Floor Plans

floor plan

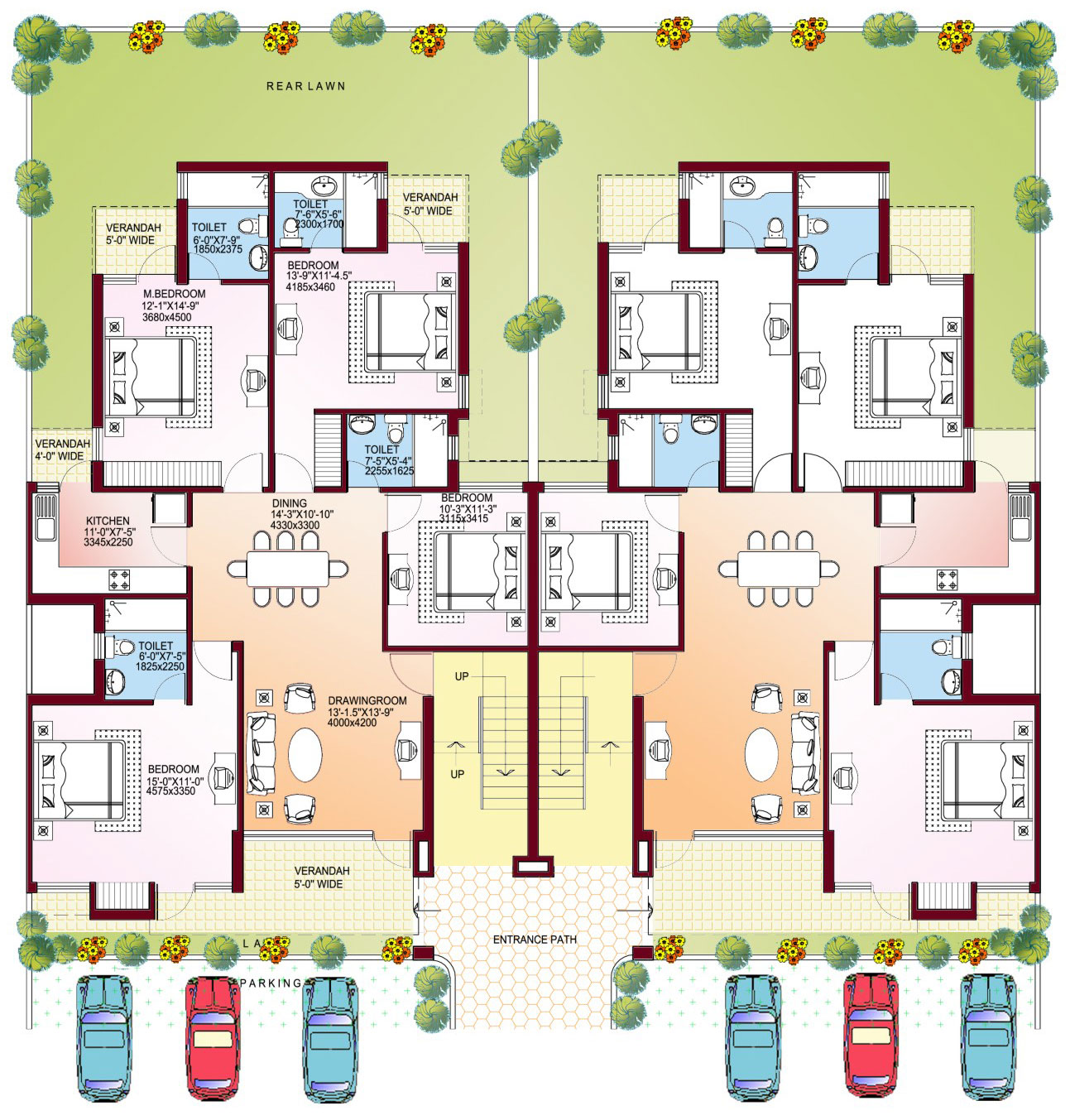

Type - A

Ground & Typical Floor Plan Plot Area : 250.31 Sq. M.
Saleable Area : 158.13 Sq. M. (1701 Sq. Ft.) Plot no. : 2 to 11, 14 to 23

Accommodation

Drawing / Dining, Kitchen, 4-Bed, 4-Toilet, Verandah / Balcony
Additional Front & Rear Lawn as per site

Download

ground floor

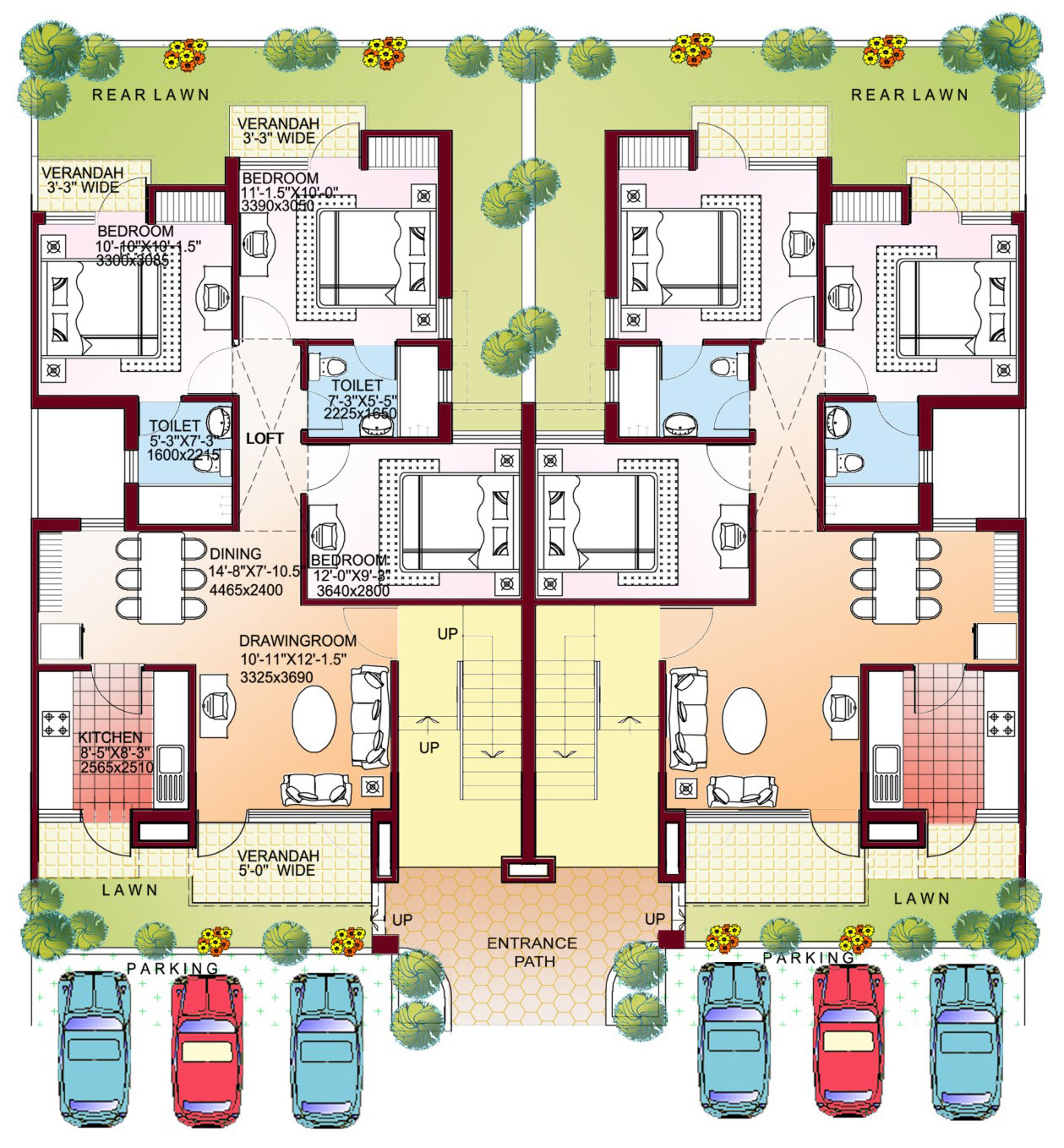

Type - B

Ground & Typical Floor Plan Plot Area : 149.98 Sq. M.
Saleable Area : 104.87 Sq. M. (1128 Sq. Ft.) Plot no. : 35 to 45, 52 to 56, 59 to 63, 66 to 73, 77 to 84

Accommodation

Drawing / Dining, Kitchen, 3-Bed, 2-Toilet, Verandah / Balcony
Additional Front & Rear Lawn as per site

Download

ground floor plan

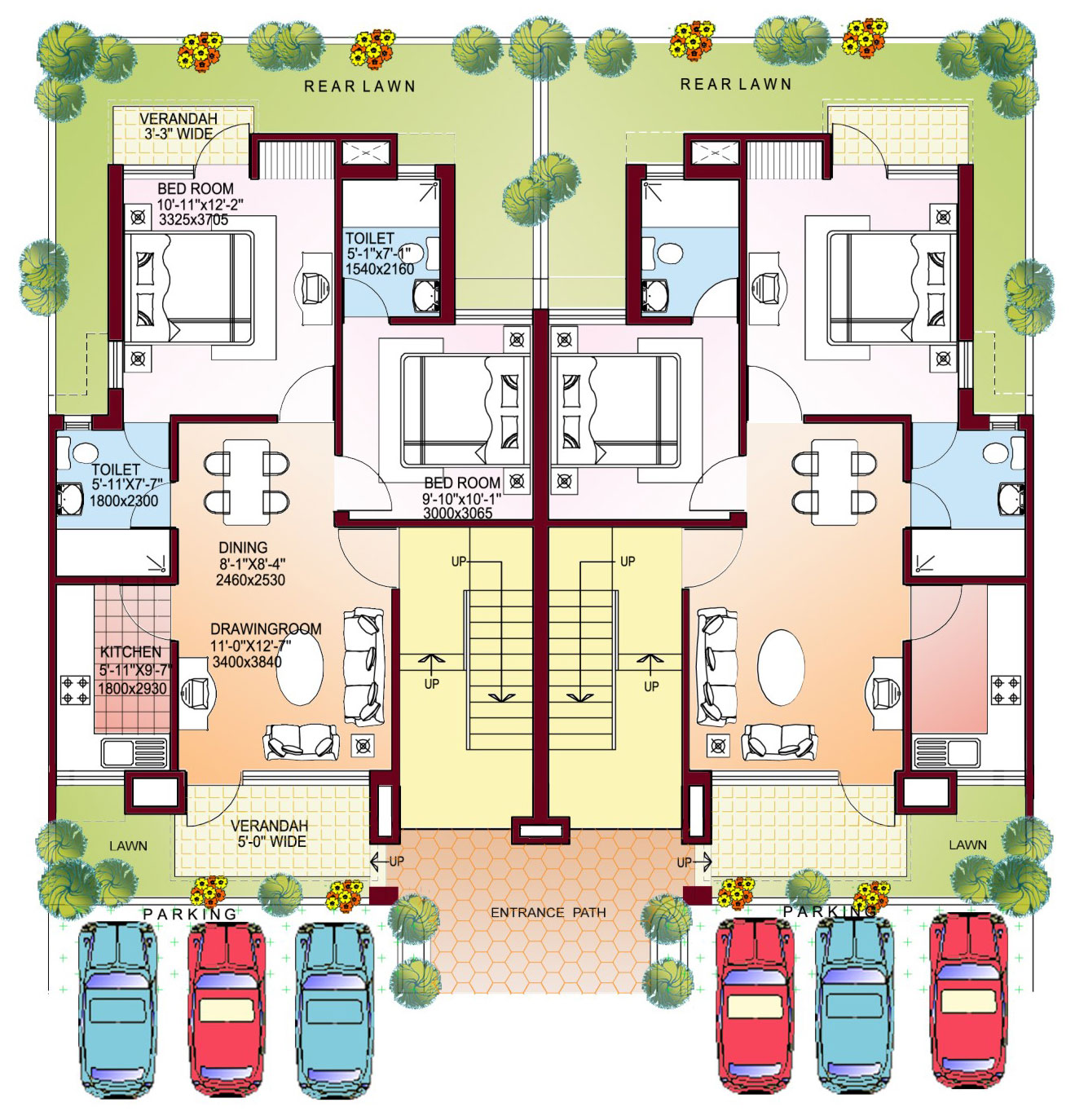

Type - C

Ground & Typical Floor Plan Plot Area : 115.80 Sq. M.
Saleable Area : 80.27 Sq. M. (864.00 Sq. Ft.) Plot no. : 26 to 33

Accommodation

Drawing / Dining, Kitchen, 2-Bed, 2-Toilet, Verandah / Balcony
Additional Front & Rear Lawn as per site

Download



Note:
1. Plans are tentative & subject to approval from the local Authority.
2. The size & shape of the Balcony and Architectural features may vary as/the elevation.
